FDH SERIESSTANDARD
FDH Type Hydraulic Cylinder
Standard ISO-based option for custom hydraulic cylinder projects
50- 200 mm
Piston Diameter
28- 140 mm
Piston Rod Diameter
0- 300 mm
Stroke Length
Controlled motion for custom hydraulic cylinder projects
Fenitsa evaluates hydraulic cylinders according to machine-specific lifting, pressing, clamping, positioning, tilting, and controlled movement requirements, working load, pressure, and machine function.
Sized around real project data
Bore, rod, stroke, mounting geometry, operating conditions, quantity, and documentation needs are reviewed before production or supply.
Built for durability and repeatable service
Material, seal, guidance, surface finish, and testing choices are matched to technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment.
KHS SERIESHEAVY DUTY

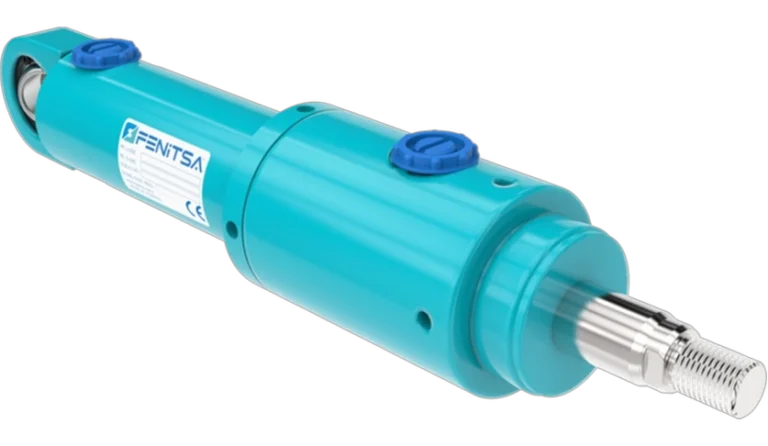

KHS Type Hydraulic Cylinder
Reinforced cylinder option for custom hydraulic cylinder projects
40- 200 mm
Piston Diameter
22- 110 mm
Piston Rod Diameter
0- 3000 mm
Stroke Length
THS SERIESSTANDARD
THS Type Hydraulic Cylinder
Welded-body support for compact and demanding machinery
40- 199 mm
Piston Diameter
22- 110 mm
Piston Rod Diameter
0- 3000 mm
Stroke Length
COMPACT
Telescopic Hydraulic Cylinder
Long travel support where compact retracted length is required
65- 180 mm
Piston Diameter
20- 166 mm
Piston Rod Diameter
0- 502 mm
Stroke Length
HIGH PRESSURE
Rotary Hydraulic Cylinder
Sealing support for demanding operating conditions
40- 200 mm
Piston Diameter
28- 125 mm
Piston Rod Diameter
0- 5000 mm
Stroke Length
INDUSTRIAL SERIES
Cylinder Front Rear Cover
Standard ISO-based option for custom hydraulic cylinder projects
0- 0 mm
Piston Diameter
0- 0 mm
Piston Rod Diameter
0- 0 mm
Stroke Length
ASSEMBLY SERIESEQUIPMENT
Assembly Equipment
Mounting and connection equipment for project builds
0- 0 mm
Piston Diameter
0- 0 mm
Piston Rod Diameter
0- 0 mm
Stroke Length
BLOCK SERIESHIGH QUALITY
Hydraulic Blocks
Hydraulic circuit and spare parts support
0- 0 mm
Piston Diameter
0- 0 mm
Piston Rod Diameter
0- 0 mm
Stroke Length
Custom Hydraulic Cylinder Manufacturer
Custom cylinder engineering for machinery builders and project-specific equipment.
Custom Hydraulic Cylinder Manufacturer are evaluated around real operating requirements: technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment. Fenitsa uses these inputs to support reliable motion, correct fitment, and long service life for custom hydraulic cylinder projects.
For machinery builders, OEM designers, automation lines, retrofit teams, and special equipment producers, the right hydraulic cylinder must match the required movement, installation space, load direction, pressure level, and maintenance expectations. Standard product families can be reviewed when dimensions are suitable, while custom manufacturing can be evaluated when the machine requires a project-specific solution.
Fenitsa can work from technical drawings, existing samples, measured dimensions, or application data. This helps define bore, rod, stroke, mounting, port position, seal package, testing, and documentation before quotation or production.
Engineering Focus for custom hydraulic cylinder projects
Compare the main technical points that shape the selected hydraulic cylinder.
| Criteria | What it means | Engineering focus | Search intent |
|---|---|---|---|
| Motion function | Supports machine-specific lifting, pressing, clamping, positioning, tilting, and controlled movement in custom hydraulic cylinder projects. | Force, speed, stroke, and load direction. | custom hydraulic cylinder manufacturer |
| Machine fitment | Cylinder geometry is matched to the installation area and connected mechanism. | Closed length, open length, pins, eyes, ports, and mounting style. | custom hydraulic cylinder projects dimensions |
| Operating conditions | Selected according to technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment. | Sealing, guidance, surface finish, material strength, and service life. | custom hydraulic cylinder projects specification |
| Standard or custom | Catalog product families and custom builds can be evaluated depending on the project. | Repeat orders, drawing-based production, or sample-based replacement. | custom hydraulic cylinder projects manufacturer |
| Testing and support | Pressure, sealing, and documentation needs are reviewed according to the product group. | Internal checks, external leakage control, and project-specific documentation. | custom hydraulic cylinder projects supplier |
Where This Page Applies
The following use cases help connect the SEO topic with real machine requirements.
OEM machine integration
Cylinder sizing and mounting support for machinery builders, OEM designers, automation lines, retrofit teams, and special equipment producers.
Replacement and service
Dimension review for existing machines where fitment and uptime matter.
Custom manufacturing
Project-specific bore, rod, stroke, mounting, ports, and seal requirements.
Heavy-duty operation
Material, guidance, and sealing choices for technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment.
Production and repeat orders
Consistent specifications for repeat manufacturing, spare parts, or supply programs.
Technical documentation
Drawing, sample, pressure, and quality details can be reviewed before production.
Information Needed Before Selection
These details make it easier to evaluate a standard, custom, replacement, or production-ready solution.
- Application areaDefine the machine, line, or equipment where the hydraulic cylinder will operate.
- Required movementClarify machine-specific lifting, pressing, clamping, positioning, tilting, and controlled movement and the force direction.
- Bore / rod / strokeShare the main dimensions or target force and travel values.
- Mounting geometryProvide pin, eye, clevis, flange, trunnion, or end fitting details.
- Operating pressureInclude working pressure, peak pressure, or air supply details where relevant.
- Duty cycleExplain cycle frequency, holding time, load changes, and daily operating rhythm.
- EnvironmentReview technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment before material and seal selection.
- Drawing or sampleA technical drawing, CAD model, or existing sample helps confirm fitment.
- Quantity and timingShare prototype, repeat order, wholesale, or production quantity expectations.
Share these details with Fenitsa to evaluate a suitable hydraulic cylinder for custom hydraulic cylinder projects.
Support & ContactMounting and Integration Options
Mounting style must match the machine structure, force direction, and service access.
Clevis / pin mount
Common for pivoting mobile and industrial mechanisms.
Rod eye / bearing
Useful where alignment, angular movement, and pin fit are important.
Flange / bracket mount
Selected when the actuator must connect to a fixed machine structure.
Trunnion / custom mount
Evaluated for special movement paths, compact layouts, or project-specific geometry.
Manufacturing and Supply Approach
A clear review process helps reduce fitment risk and supports dependable performance.
- 1
Requirement review
Application, machine function, dimensions, load, pressure, and environment are clarified.
- 2
Sizing and geometry check
Bore, rod, stroke, closed length, open length, ports, and mounting details are evaluated together.
- 3
Material and seal selection
Material, seal, guide, and surface choices are matched to technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment.
- 4
Production and assembly
Components are produced and assembled for alignment, smooth movement, and service reliability.
- 5
Testing and documentation
Pressure, sealing, leakage, and documentation requirements are handled according to the project.
Standard vs Custom Solution
The right path depends on dimensions, delivery expectations, repeatability, and machine-specific details.
| Criteria | Standard option | Custom project |
|---|---|---|
| Best for | Known dimensions, catalog compatibility, or repeat requirements. | Machine-specific geometry, special stroke, high load, or sample-based replacement. |
| Dimensions | Catalog bore, rod, stroke, and mounting ranges. | Project-specific bore, rod, stroke, length, ports, and connection details. |
| Engineering review | Standard checks for product family and operating range. | Application-specific review of load case, environment, and installation constraints. |
| Documentation | Standard product information and quote details. | Drawing, sample, testing, and project documentation as required. |
| Supply | Repeat catalog selection or known spare part need. | Prototype, OEM production, wholesale batch, or special project manufacturing. |
Materials, Seals, and Service Life Factors
Long service life depends on the complete specification, not only on the main dimensions.
Cylinder tube and body
Machining and surface quality support reliable movement, sealing, and long service life.
Piston rod or moving element
Rod diameter, surface finish, guidance, and corrosion needs are reviewed with the load case.
Seals and guides
Seal and guide choices are matched to technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment.
Mounting and connection parts
Pins, eyes, clevises, ports, brackets, and end fittings are checked for alignment and service access.
Fenitsa Product Group Fit
Product families can be reviewed according to load, pressure, stroke, mounting, and operating environment.
| Product group | Typical role | Strength | When to evaluate | Related intent |
|---|---|---|---|---|
| KHS | Heavy mobile and industrial cylinder functions. | Reinforced design for demanding loads. | High load, mobile equipment, and rugged operation. | heavy duty hydraulic cylinder |
| THS | Compact welded-body hydraulic applications. | Welded structure and durable industrial use. | Compact mounting and robust machine integration. | welded hydraulic cylinder |
| FDH | Standard ISO-based cylinder requirements. | Catalog sizing and repeat production support. | Known dimensions and standard machine layouts. | standard hydraulic cylinder |
| Telescopic | Long stroke with limited retracted length. | Multi-stage extension capability. | Dump, lift, and compact long-travel applications. | telescopic hydraulic cylinder |
| Hydraulic blocks | Hydraulic circuit and spare parts support. | System integration and flow control support. | When actuation is part of a larger hydraulic system. | hydraulic block supplier |
What Affects Pricing?
Pricing depends on technical requirements, production quantity, and documentation expectations.
- Dimensions and forceBore, rod, stroke, load, and pressure requirements affect material and machining needs.
- Mounting and connection detailsSpecial end fittings, ports, pins, bearings, and brackets can change production complexity.
- Material and sealingUpgraded materials or seal packages may be needed for technical drawing, load case, stroke, bore, rod, mounting, pressure, and service environment.
- Quantity and repeat ordersPrototype, one-off, wholesale, and repeat production quantities are evaluated differently.
- Testing and documentationPressure checks, leakage control, certificates, drawings, and project documents can affect the offer.
Need help evaluating Custom Hydraulic Cylinder Manufacturer?
Send your machine details, movement requirement, dimensions, drawing, or sample information so Fenitsa can review the right solution.
Frequently Asked Questions
What information is needed for Custom Hydraulic Cylinder Manufacturer?
Fenitsa reviews the application, movement, bore, rod, stroke, mounting, pressure, environment, drawing or sample, and quantity details before recommending a hydraulic cylinder.
Can Fenitsa manufacture custom hydraulic cylinders?
Yes. Project-specific dimensions, mounting geometry, stroke, sealing, and documentation requirements can be evaluated for custom production.
Which product group is suitable for custom hydraulic cylinder projects?
The suitable product group depends on load, pressure, stroke, mounting, duty cycle, and environmental conditions. KHS, THS, FDH, telescopic, and related components can be reviewed according to the project.
How is the price determined?
Price depends on dimensions, material, pressure, mounting details, quantity, testing, documentation, and the level of customization.
Is a drawing or sample required?
A drawing or sample is not always mandatory, but it helps confirm dimensions, mounting details, port position, stroke, and replacement fitment.
Are testing and quality checks available?
Testing and quality checks can be defined according to the selected product group, operating pressure, sealing requirements, and project documentation needs.
Can these solutions be used for OEM production?
Yes. Fenitsa can evaluate repeatable specifications for machinery builders, OEM projects, spare parts programs, and production orders.
What affects service life?
Service life is influenced by correct sizing, alignment, rod guidance, sealing, material selection, contamination, pressure, load, and maintenance conditions.
Related Fenitsa Pages
Continue exploring product families, custom solutions, and technical support options.
