Y-Connector (Segmented) Cylinder (Ø mm)

Ø32

Ø40

Ø50

Ø63

Ø80

Ø100

Ø125

Ø160

Ø200

Ø250

Ø320

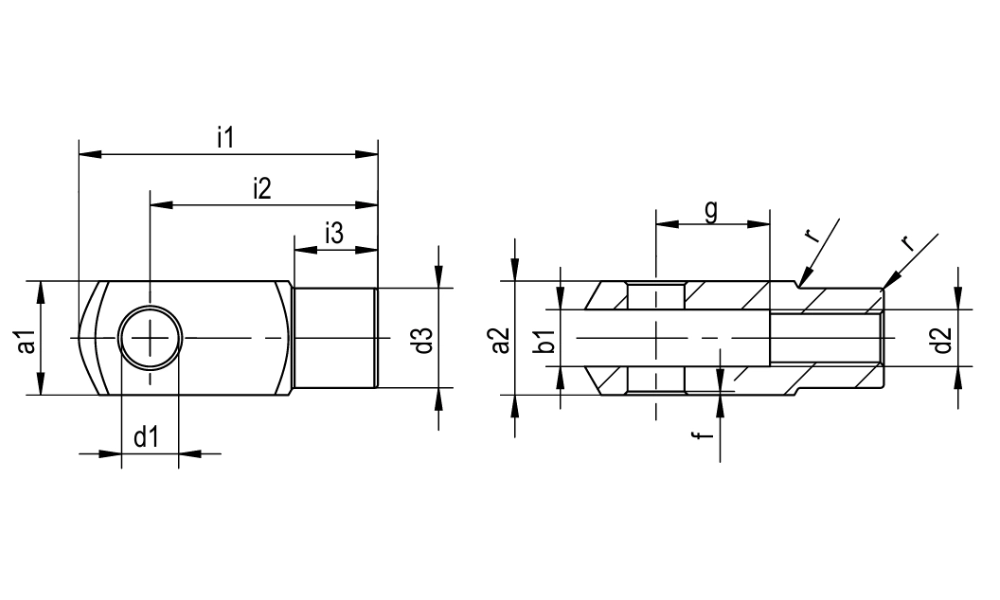

Technical Drawing

ISO SERIES
Cylinder (Ø mm)	d1	g	a1	a2	b1	d2	d3	f	i1	i2	i3	r
32	10	20	20	20	10	M10x1,25	18	0,5	52	40	15	0,5
40	12	24	24	24	12	M12x1,25	20	0,5	62	48	18	0,5
50-63	16	32	32	32	16	M16x1,5	26	1	83	64	24	1
80-100	20	40	40	40	20	M20x1,5	34	1,5	105	80	30	1,5
125	25	50	50	50	25	M27x2	42	1,5	132	100	36	1,5
160-200	35	72	66	66	35	M36x2	60	2	188	144	41	2
250	40	96	80	80	40	M42x2	70	3	220	168	43	3
320	50	111	90	90	50	M48x2	80	3	250	192	44	3
