Middle Joint Connection Cylinder
Ø32
Ø40
Ø50
Ø63
Ø80
Ø100
Ø125
Ø160
Ø200
Ø250
Ø320

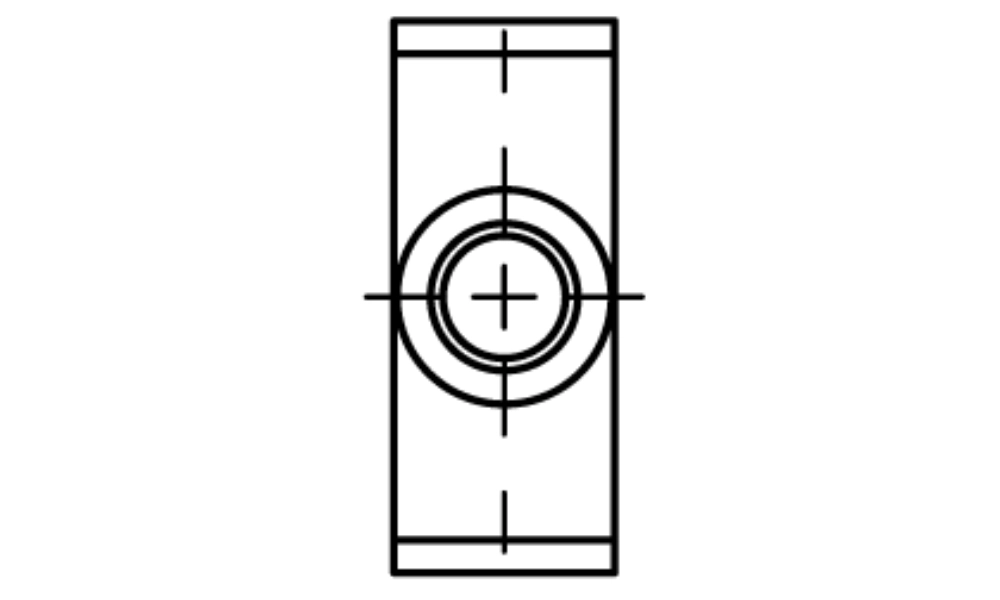

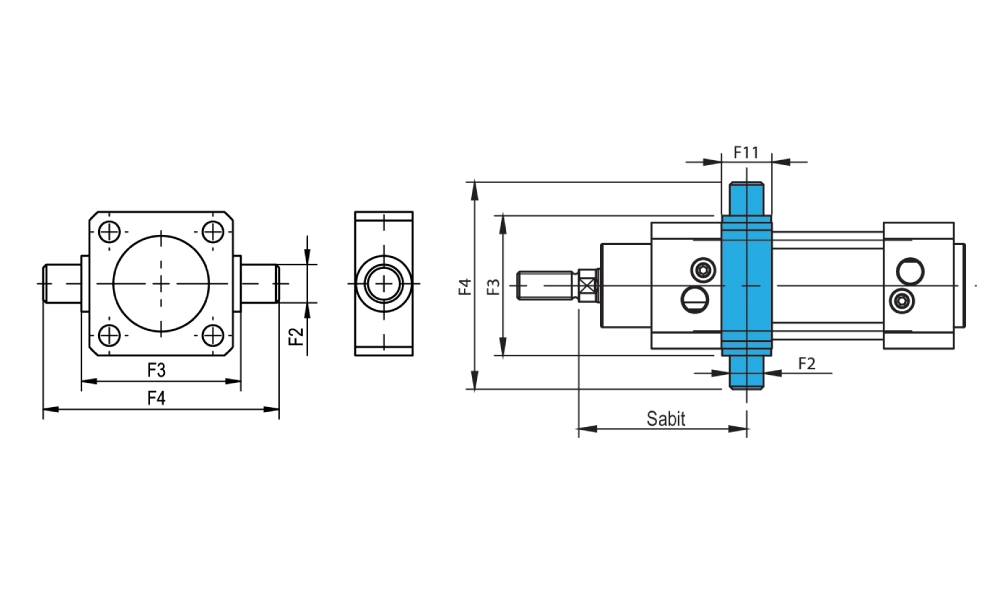

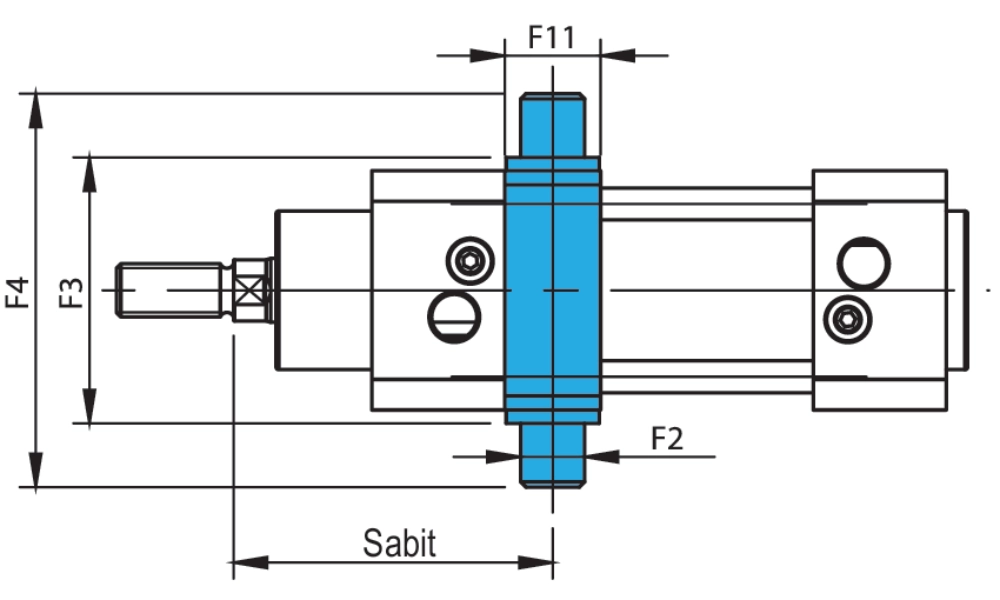

| CETOP SERIES (PNS FIXED) | |||||
|---|---|---|---|---|---|
| Cylinder (Ø mm) |
F2 Ø |
F3 | F4 | F11 | Fixed |
| 125 | 25 | 160 | 210 | 38 | 125 |
| 160 | 32 | 200 | 264 | 48 | 155 |
| 200 | 32 | 250 | 314 | 48 | 165 |
| 250 | 40 | 320 | 400 | 62 | 186 |
| 320 | 50 | 400 | 500 | 65 | 210 |
| CETOP SERIES (PNS MOVABLE) | ||||
|---|---|---|---|---|
| Cylinder (Ø mm) |
F2 Ø |
F3 | F4 | F11 |
| 125 | 25 | 160 | 210 | 32 |
| 160 | 32 | 200 | 264 | 40 |
| 200 | 32 | 250 | 314 | 40 |
| 250 | 40 | 320 | 400 | 50 |
| 320 | 50 | 400 | 500 | 60 |
| ISO SERIES | ||||
|---|---|---|---|---|
| Cylinder (Ø mm) |
F2 Ø |
F3 | F4 | F11 |
| 32 | 12 | 50 | 74 | 15 |
| 40 | 16 | 63 | 95 | 20 |
| 50 | 16 | 75 | 107 | 20 |
| 63 | 20 | 90 | 130 | 25 |
| 80 | 20 | 110 | 150 | 25 |
| 100 | 25 | 132 | 182 | 30 |
| 125 | 25 | 160 | 210 | 32 |
| 160 | 32 | 200 | 264 | 40 |
| 200 | 32 | 250 | 314 | 40 |
| 250 | 40 | 320 | 400 | 50 |
| 320 | 50 | 400 | 500 | 60 |
What Is a Middle Joint (Intermediate Trunnion)?
A middle joint connection is a trunnion placed near the middle of the cylinder body. With the pivot at mid-body the installed length stays short and the rod is better protected against buckling than with a rear hinge.
The trunnions sit in H- or U-type bearing brackets on the machine.
| Position | Middle of the body |
| Benefit | Short installed length, better buckling resistance |
| Used with | H- or U-type bearings |
See all custom cylinders and connection equipment, or contact us for a quotation.
Frequently Asked Questions
Why choose a middle trunnion?
It shortens the installed length and improves buckling resistance.
Can the trunnion position be changed?
Its position on the body is set at the design stage.
Which bearings are used?
H-type or U-type bearings.
